Sputter & Carbon Coater
SNCC 180R
- Borosilicate glass chamber of Ø180 mm x 180 mm high
- Hinged top flange for loading and unloading of specimen and exchange of targets, carbon thread and carbon rod via their respective mounts
- Chamber base pressure 5 x 10-2 mbar, operating pressure 0.1 torr up to 0.5 torr
- Specimen holder to hold 7 SEM stubs of Ø 12.5 mm
- PLC with 4” touch screen HMI with manual & auto control
- Quartz crystal film thickness monitor for in-situ coating thickness measurement is optionally available
Sputter Coating Source Mount:
- Magnetron source target Ø 57 mm, 0.1 mm up to 0.3 mm thick
- Discharge gas Air / Argon
- Current adjustable within 10 mA to 80 mA
- Digital timer to set the sputter time from 5 to 100 sec
Carbon Evaporation Source Mount:
- Carbon rod having Ø 6.15 mm can be evaporated in pulse mode
- Carbon Thread / Fiber can be evaporated in flash mode
- Either of carbon rod or carbon thread/fiber can be used at one time
- Sharpener for shaping carbon rods is included
- 0-10 volts, 75A power supply for carbon evaporation

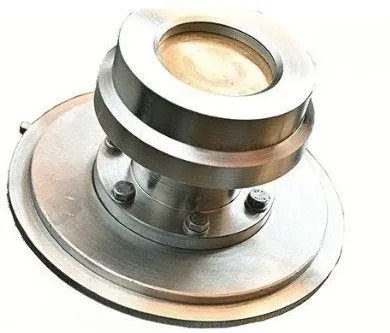

Sputter Source Mount

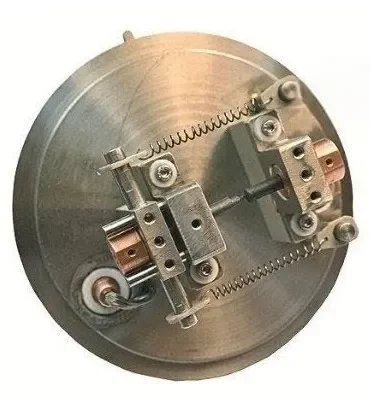

Carbon Evaporation Source Mount- Rod

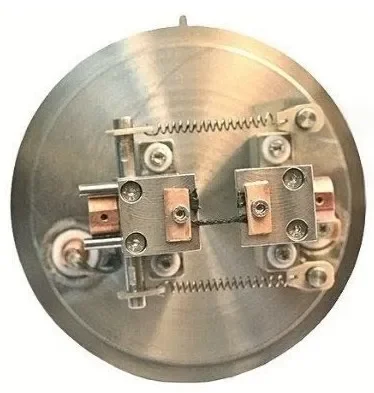

Carbon Evaporation Source Mount- Thread
Power Requirements
230 VAC, 50 Hz /
120 VAC, 60 Hz
Dimensions
L 630mm x W 650mm x H 650mm
