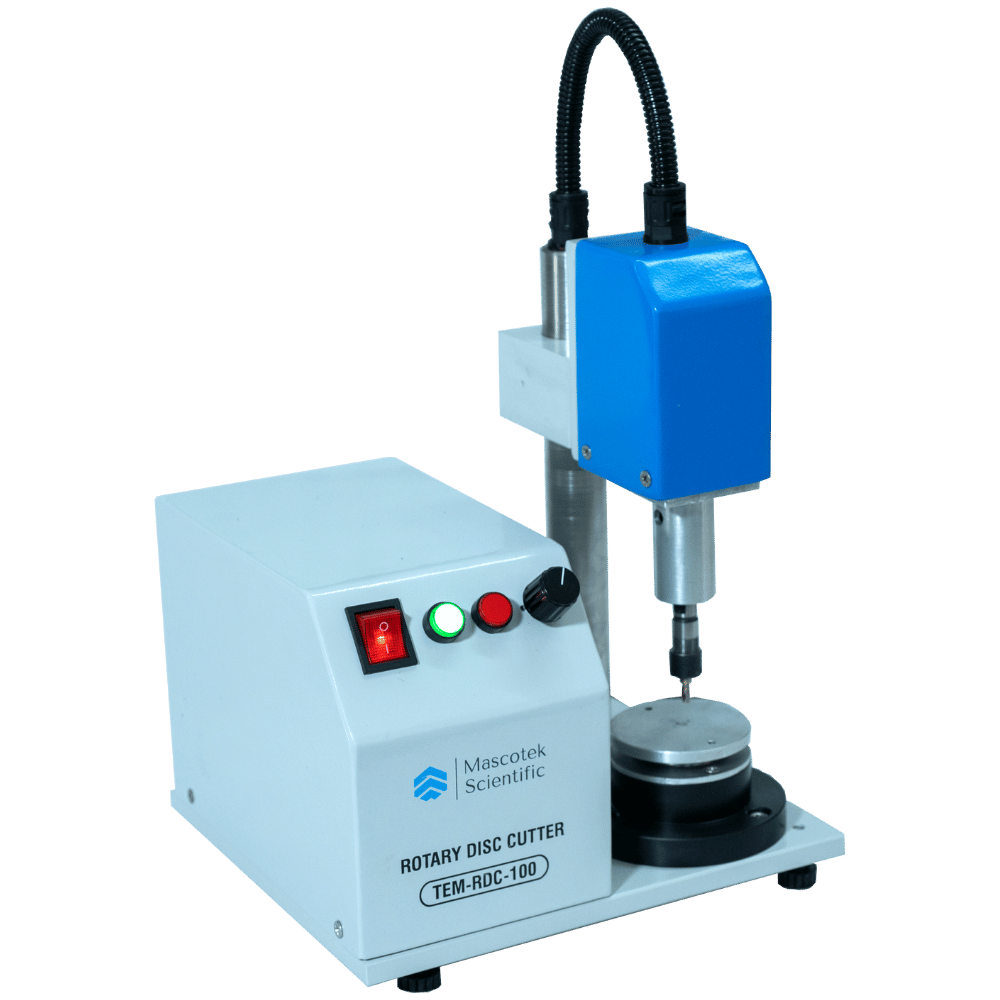

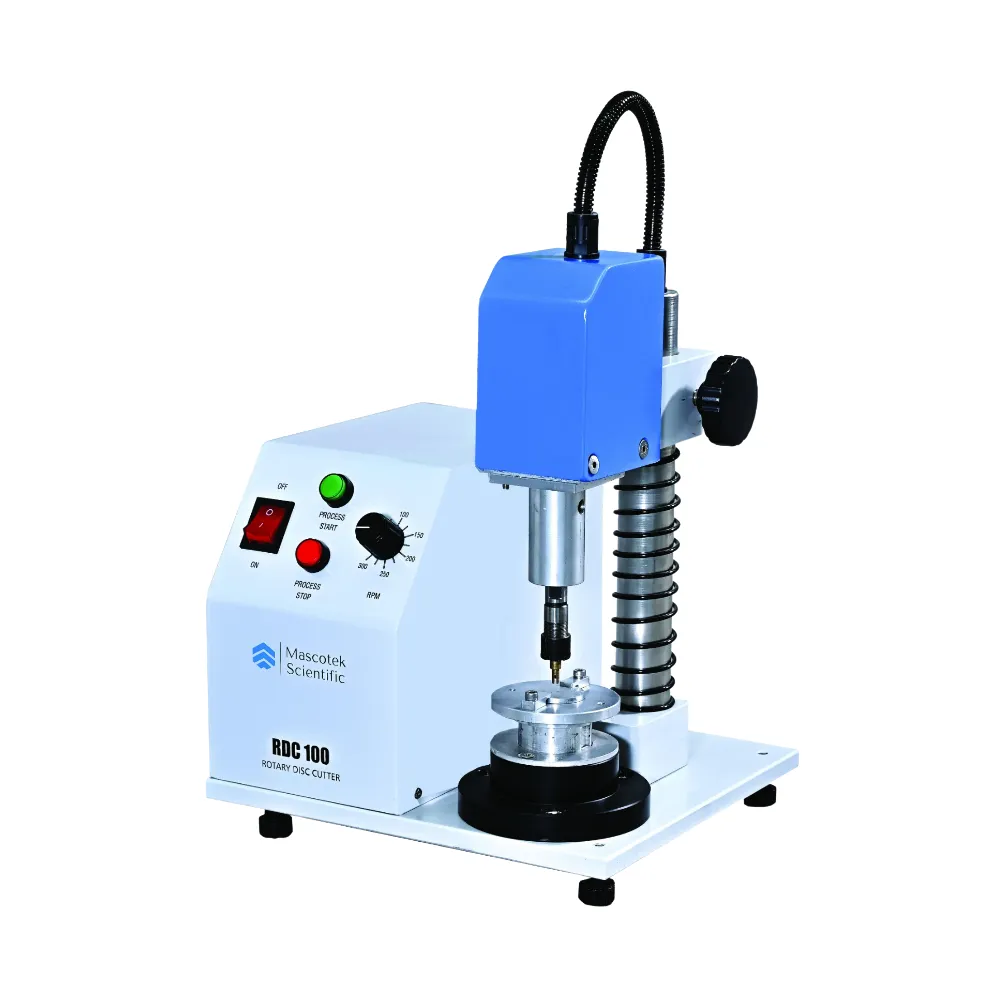

ROTARY DISC CUTTER RDC 100
The Rotary Disc Cutter RDC 100 is a precision instrument designed to cut 3mm diameter TEM discs of wide range of brittle materials including ceramics of oxides, carbides, nitrides as well as semiconductor materials such as Silicon, Gallium Arsenide, Gallium Nitride, Germanium, Sapphire etc.
- Gentle grinding and lapping action cuts wide range of materials including brittle materials, ceramics as well as single crystal materials
- Tool holding platform incorporates a high torque DC motor enabling tool rotation maximum up to 300rpm
- High tolerance rotational accuracy prevents cracking and chipping of even extremely fragile materials
- Soft touch spring loaded specimen holding platform enables gentle cutting action of the specimen
- Automatic termination of cutting process achieved through a closed loop electrical circuit mechanism
- Substrate size: Max 25 mm diameter X 2mm thick
- Set of brass tools
- 40 micron diamond paste
- Boron carbide oil based slurry
L 260mm X W 235mm X H 430mm
230VAC, 50 Hz
HOT PLATE HP 150 (Optional)
To fix specimen using 135°C melting point wax.
