LOW SPEED DIAMOND WHEEL SAW

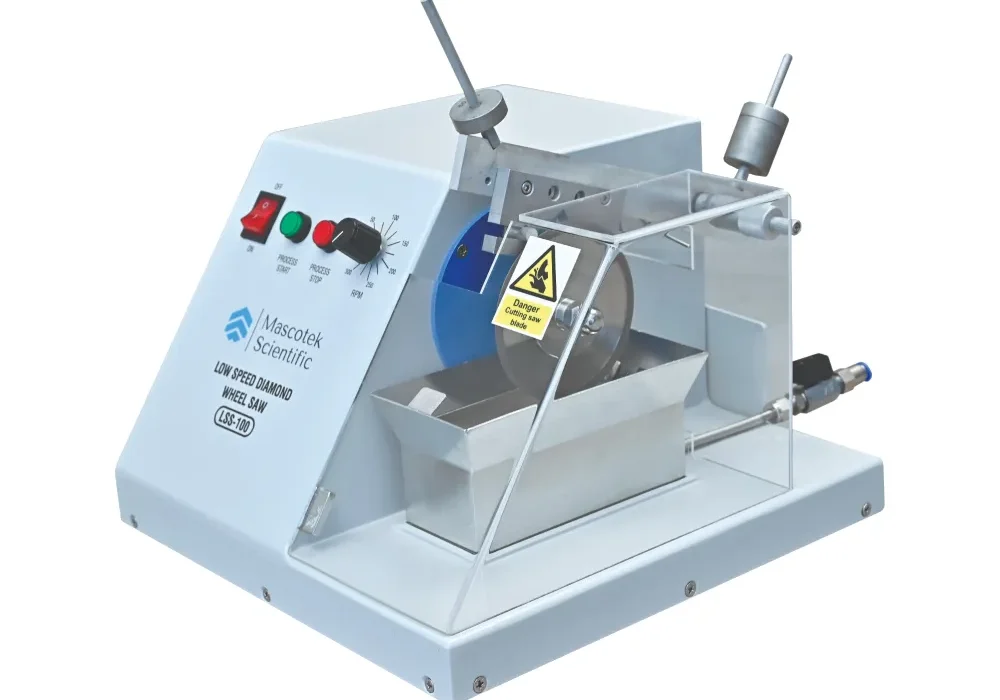

LOW SPEED DIAMOND WHEEL SAW LSS-100
The low speed diamond wheel saw LSS-100 is used as a multipurpose precision saw for bulk metallographic specimen preparation. The low speed diamond wheel saw allows cutting of wide range of materials including metals as well as fragile materials such as composites and ceramics etc. Gravity based specimen cutting results in minimal damage to the specimen. Variety of holders are available to hold samples of different shapes and sizes such as round, rectangular and irregular cross sections.
- Cutter wheel size: 4” diameter & 5" diameter diamond wheels
- Cutting Method: Gravity fed
- Wheel speed (max): 300RPM
- Loading weights up to 250gm (25, 50, 75, 100gm selectable)
- Balancing weights up to 300gm (25, 50, 75, 150gm selectable)
- Cutting Capacity (thickness max):
: 20mm (using 4" diameter wheel)
: 38mm (using 5" diameter wheel)
- Position accuracy 10 micron
- Automatic cut-off system
- Safety shield with interlock
- 4 inch and 5 inch diameter diamond wheels
- Cutting fluid
230VAC, 50 Hz
L 325mm x W 330mm x H 350mm
